Horn 1 C2 (Standard) Connector End View (D5905B)

Harness-Family: Body_Front

Color: GRAY

Gender: FEMALE

Part Number: 1/09889/96

Part Description: Not Available

Connector No: D5905B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Horn 1 C2 Connector End View (Standard)

Courtesy of CHRYSLER

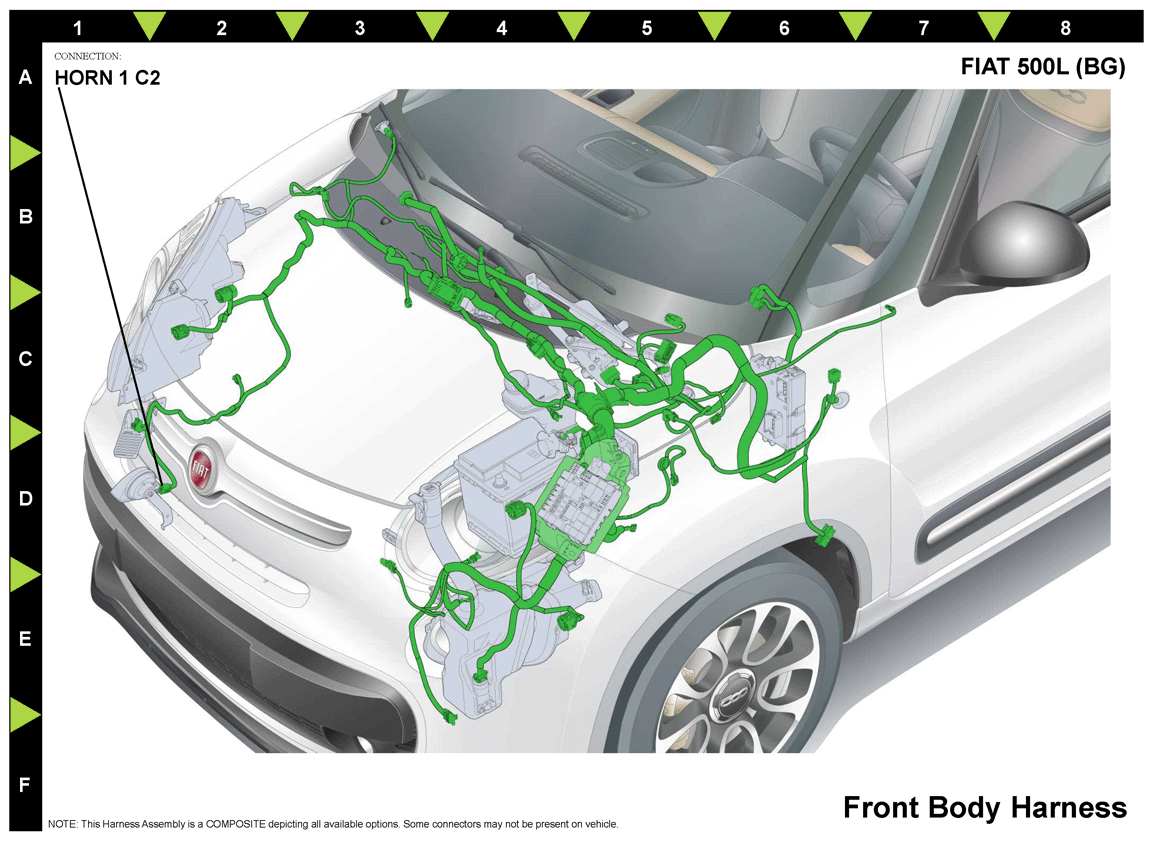

Fig 2: Horn 1 C2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

X21

1.0

FUSED HORN CONTROL OUTPUT

N/A

Z910

1.0

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
