Heater-Seat Cushion-Left (Standard) Connector End View (D6737A)

Harness-Family: Seat_Left

Color: GRAY

Gender: MALE

Part Number: 1/10115/86

Part Description: Not Available

Connector No: D6737A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Heater-Seat Cushion-Left Connector End View (Standard)

Courtesy of CHRYSLER

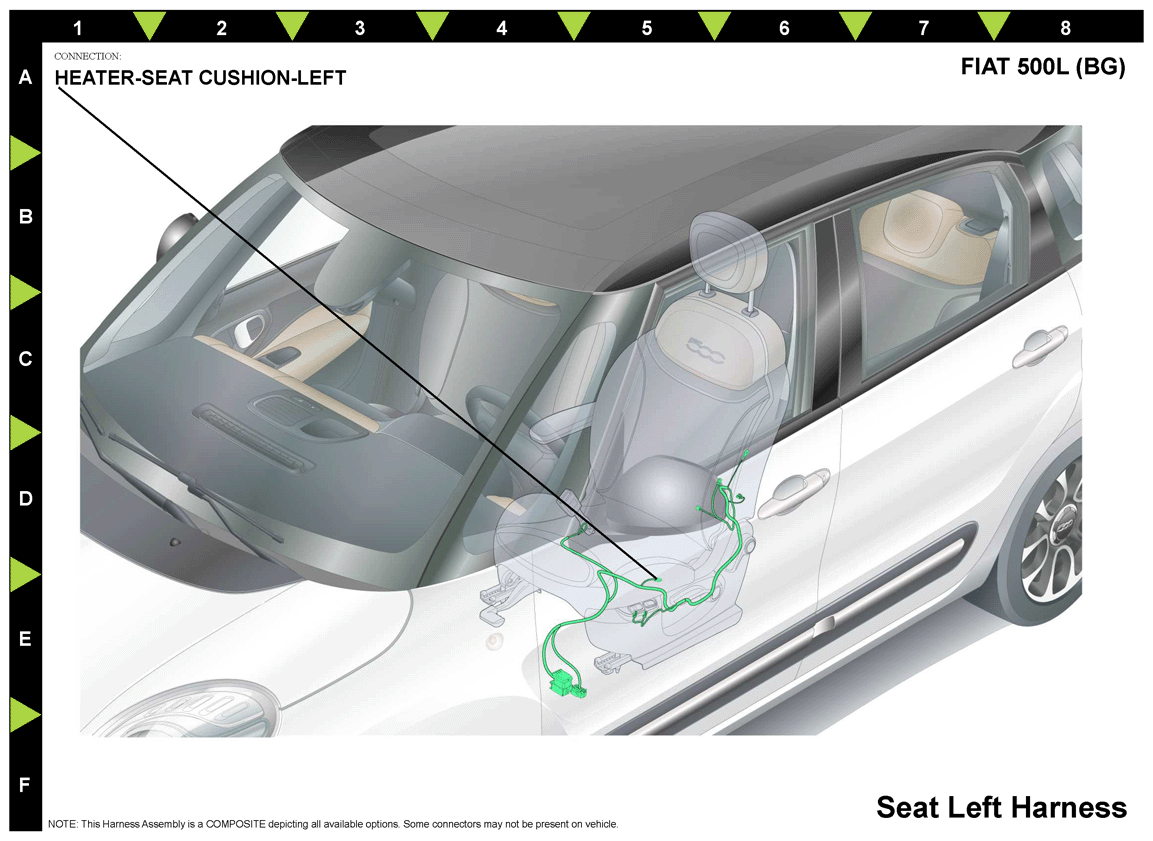

Fig 2: Heater-Seat Cushion-Left Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

P187

YE/BK

1.0

LEFT FRONT SEAT HEATER CONTROL

N/A

P289

GY/BK

1.0

LEFT FRONT SEAT HEATER CONTROL

N/A

⁽¹⁾	Pins not listed are not used for this connector
