Airbag-Side Thorax-Left C2 (Standard) Connector End View (D6679B)

Harness-Family: Seat_Left

Color: NA

Gender: FEMALE

Part Number: 102028-AH02

Part Description: Not Available

Connector No: D6679B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Airbag-Side Thorax-Left C2 Connector End View (Standard)

Courtesy of CHRYSLER

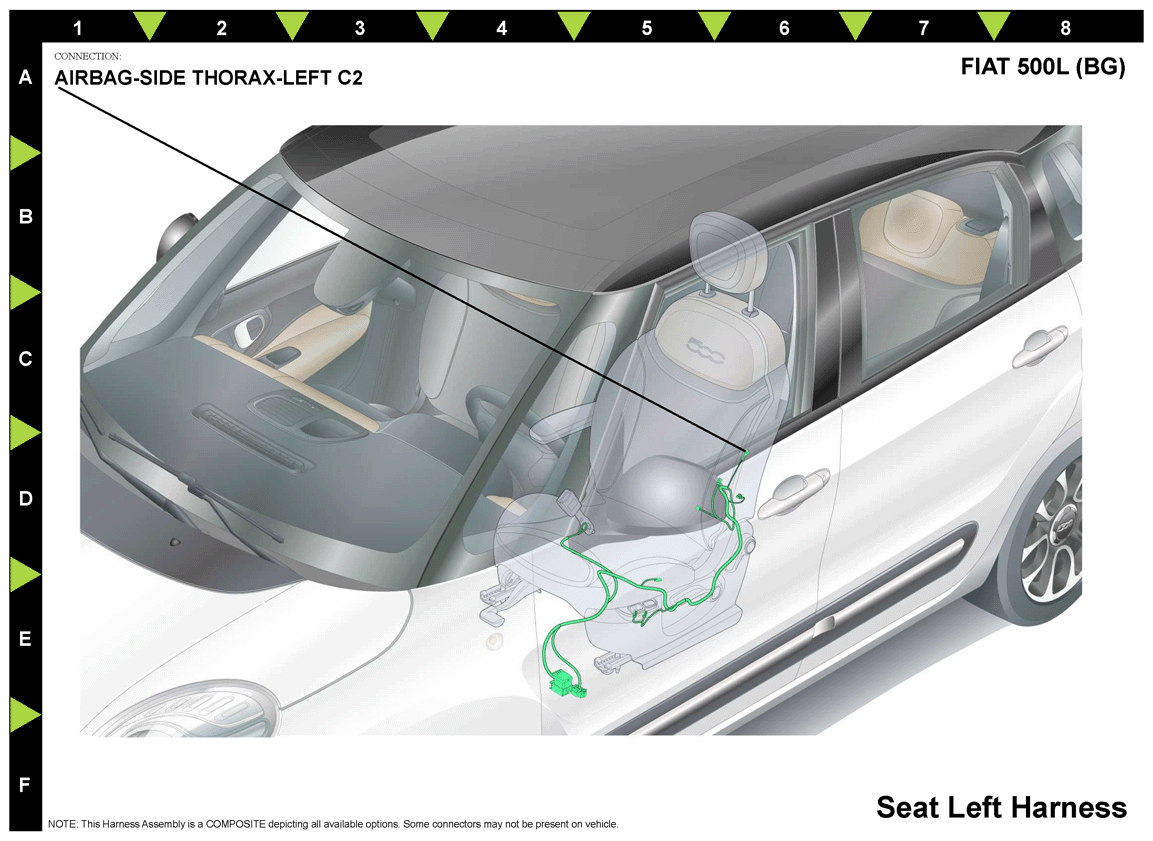

Fig 2: Airbag-Side Thorax-Left C2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z601

0.5

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
