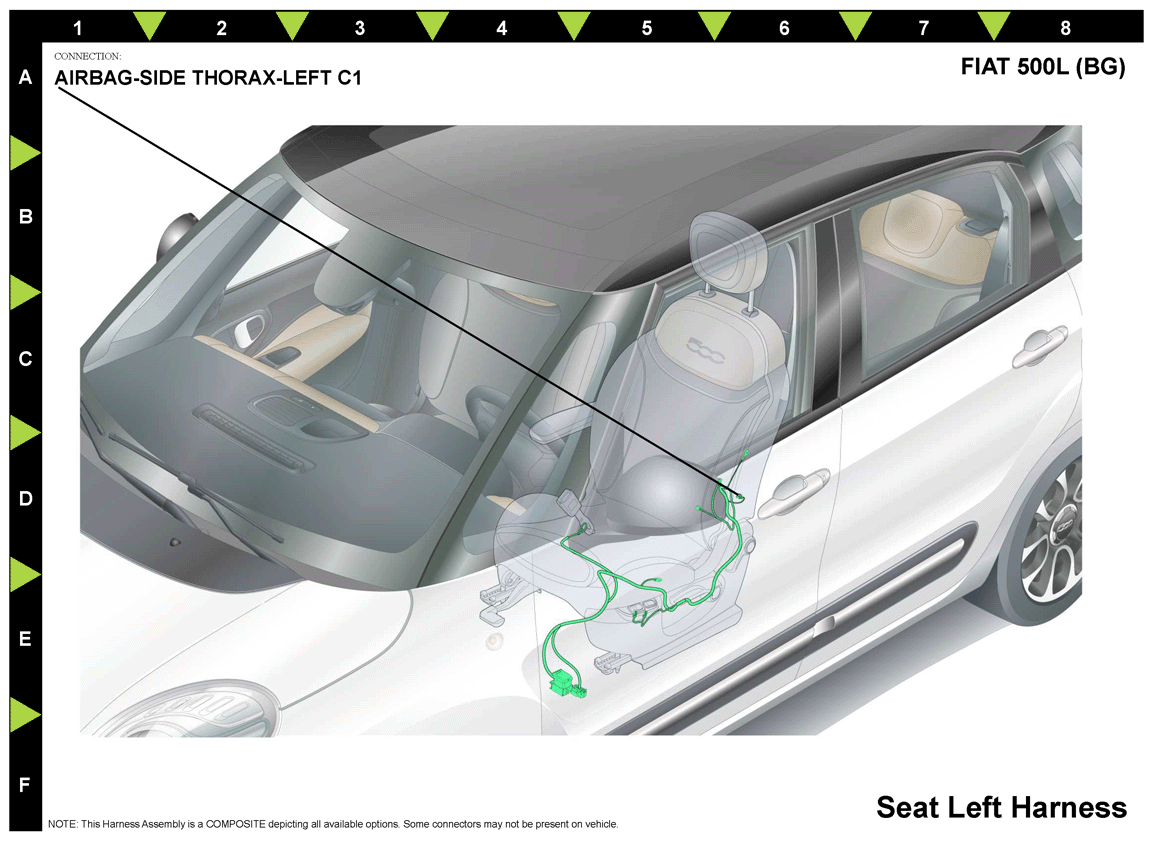

Airbag-Side Thorax-Left C1 (Standard) Connector End View (D6679A)
Harness-Family: Seat_Left
Color: BLACK
Gender: FEMALE
Part Number: 1/09085/93
Part Description: Not Available
Connector No: D6679A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | R5 | GN/YE | 0.5 | LEFT SEAT THORAX SQUIB 1 LINE 2 | N/A | ||
| 2 | R7 | GN/BK | 0.5 | LEFT SEAT THORAX SQUIB 1 LINE 1 | N/A | ||
|
|||||||
