Airbag-Passenger Squib 3 (Standard) Connector End View (D2732A)

Harness-Family: Airbag_Pass

Color: BLACK

Gender: FEMALE

Part Number: PPI0001460

Part Description: Not Available

Connector No: D2732A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Airbag-Passenger Squib 3 Connector End View (Standard)

Courtesy of CHRYSLER

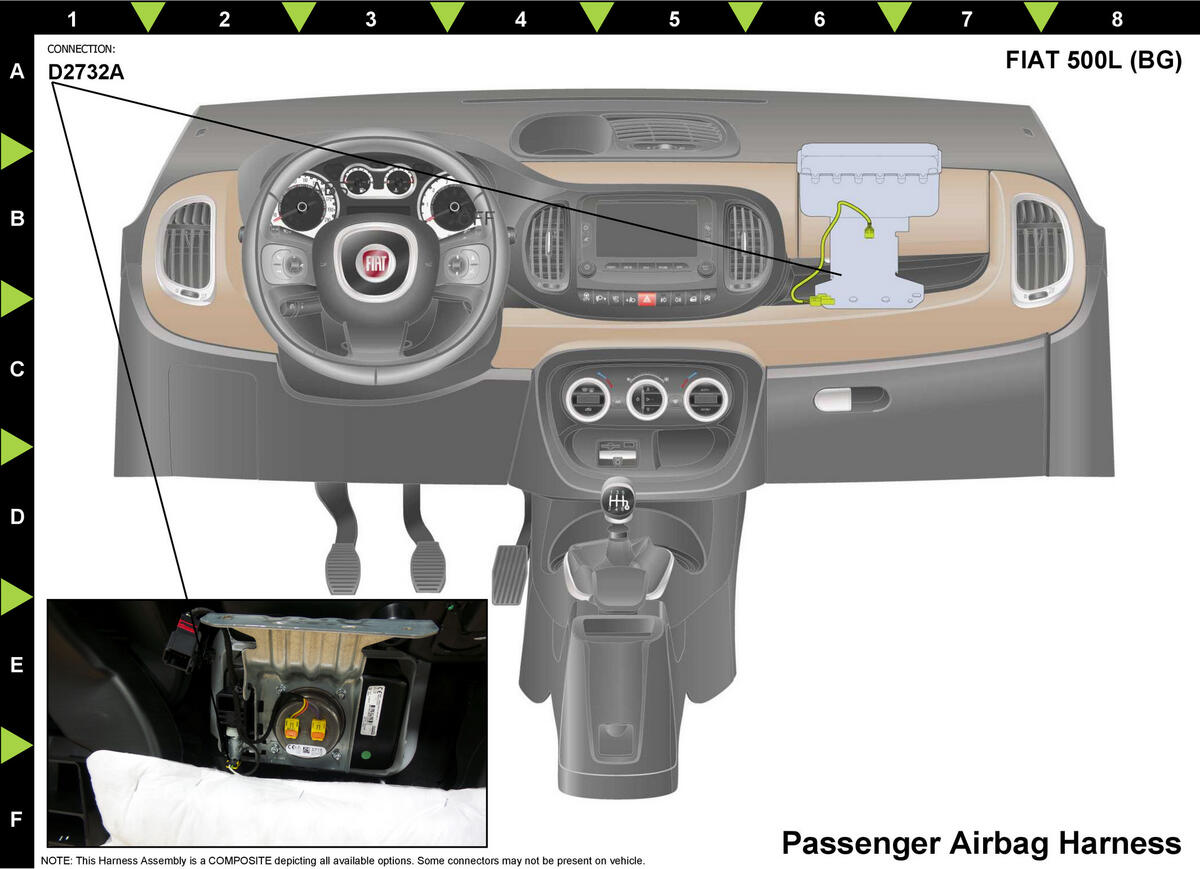

Fig 2: Airbag-Passenger Squib 3 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R68

DB/GY

0.5

PASSENGER SQUIB 3 LINE 1

N/A

R66

DB/YE

0.5

PASSENGER SQUIB 3 LINE 2

N/A

⁽¹⁾	Pins not listed are not used for this connector
