Airbag-Passenger Squib 2 (Standard) Connector End View (D6666A)

Harness-Family: Airbag_Pass

Color: YELLOW

Gender: FEMALE

Part Number: PPI0001462

Part Description: Not Available

Connector No: D6666A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Airbag-Passenger Squib 2 Connector End View (Standard)

Courtesy of CHRYSLER

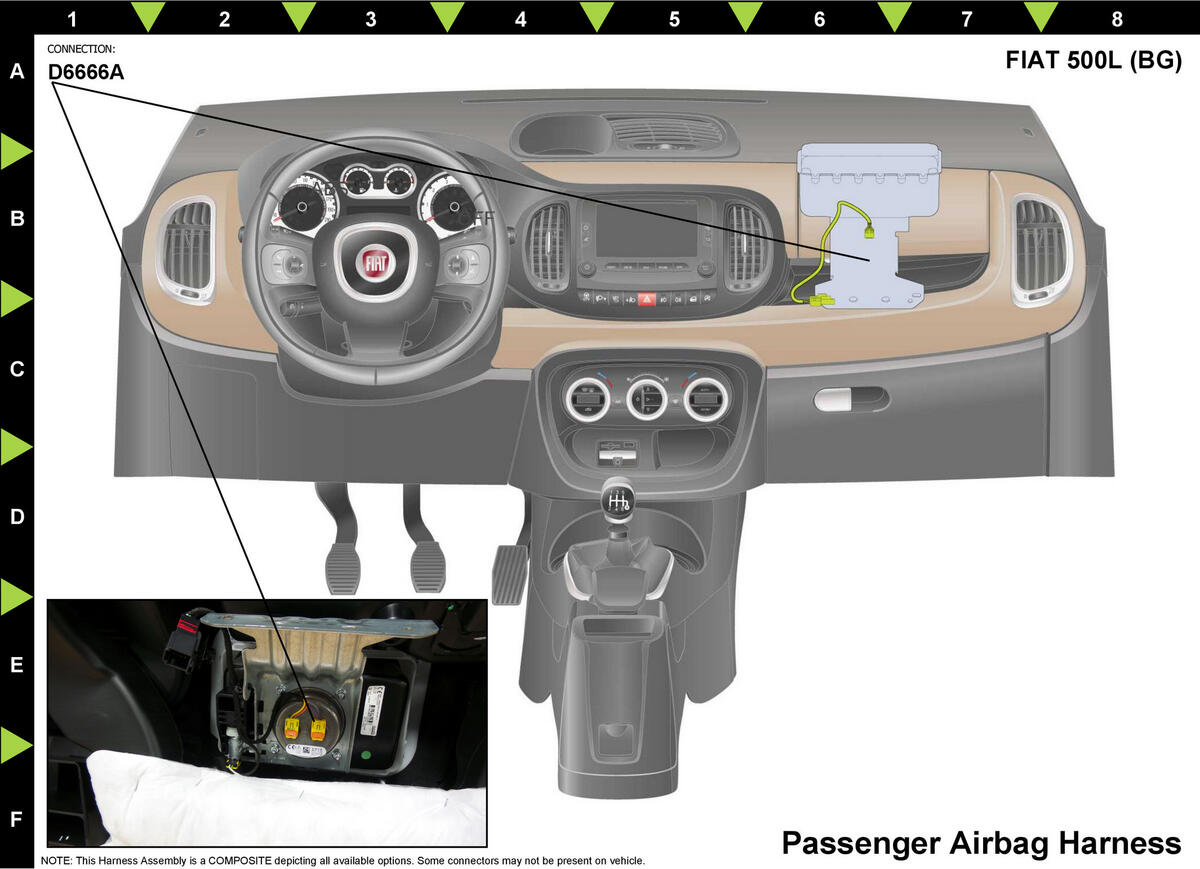

Fig 2: Airbag-Passenger Squib 2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R62

DB/VT

0.5

PASSENGER SQUIB 2 LINE 2

N/A

R64

DB/WH

0.5

PASSENGER SQUIB 2 LINE 1

N/A

⁽¹⁾	Pins not listed are not used for this connector
