Armrest, Front Center Console: Removal

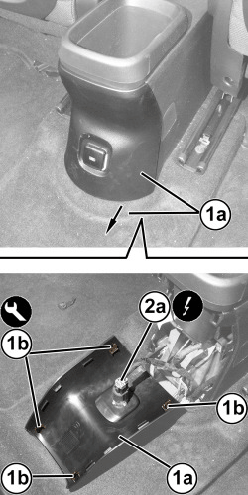

GC0184294Courtesy of CHRYSLER GROUP, LLC
  1. Using a trim stick, remove the cover panel (1a) at the rear of the floor console.
  2. Disconnect the USB wire harness connector (2a).

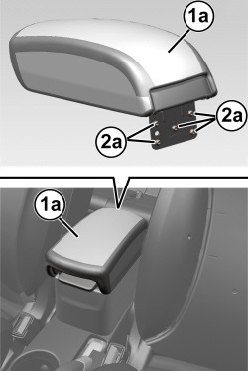

    GC0184232Courtesy of CHRYSLER GROUP, LLC
  3. Remove the screws (2a) securing the armrest (1a).
  4. Remove the armrest (1a).
