Grille, Upper: Removal

GC0184266Courtesy of CHRYSLER GROUP, LLC

REMOVAL

  1. Remove the fascia. Refer to FASCIA, FRONT, REMOVAL .

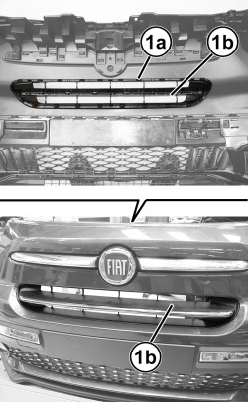

  2. Working on the inside of the fascia, release the various perimeter retainers (1a) and remove the grille (1b).
