Gap And Flush: Specifications

Courtesy of CHRYSLER GROUP, LLC

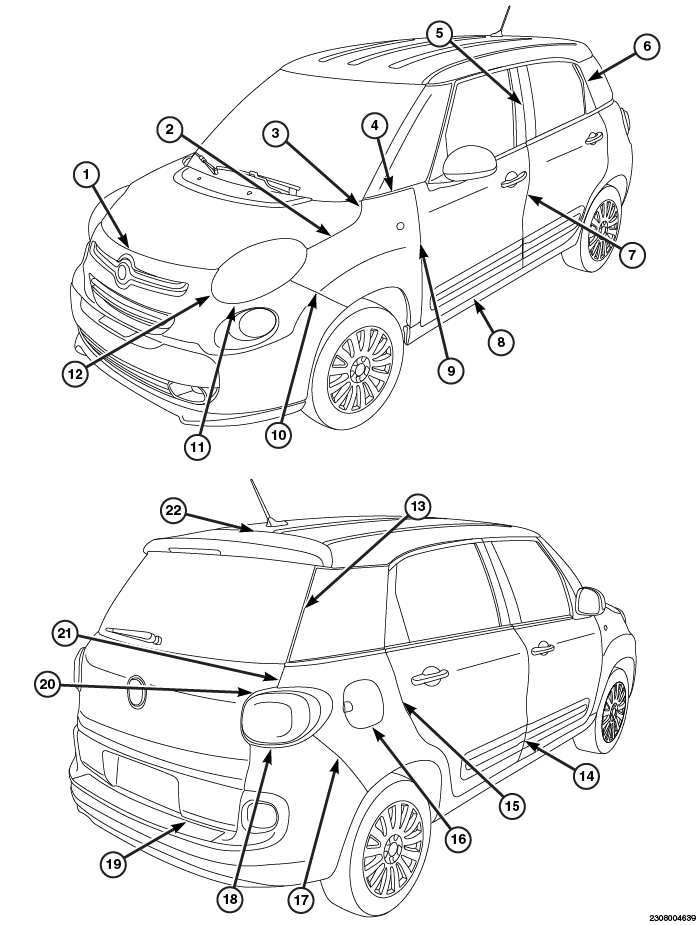

Base model shown in the illustration, other models typical unless noted.

NOTE:

All measurements are in millimeters

DIMENSION	DESCRIPTION	GAP	FLUSH
1	Hood to Fascia	4.5 +/- 1.2	Fascia O/F 2.3 +/- 1.4
2	Hood to Fender	3.5 +/- 1.0	Fender U/F 1.9 +/- 1.0
3	Hood to Fender Rear	5.2 +/- 1.5	Fender O/F +/- 1.7
4	Fender to Glass	3.5 +/- 1.0	Glass U/F 2.6 +/- 1.5
5	Front Door Applique to Rear door Applique	4.5 +/- 1.4	Rear Door U/F 0.0 +/- 1.6
6	Rear Door Applique to Quarter Glass	4.3 +/- 1.3	Rear Door O/F 2.0 +/- 1.8
7	Front Door to Rear Door	4.0 +/- 0.9	Rear Door U/F 0.0 +/- 1.0
8	Doors to Sill	4.5 +/- 1.1	Fender O/F 0.5 +/- 0.5
9	Front Door to Fender	4.3 +/- 0.7	Fender O/F 0.6 +/- 0.9
10	Fender to Fascia	0.0 + 0.5	Fender U/F 0.7 +/- 0.7
11	Headlamp to Fascia	2.5 +/- 1.2	-
12	Headlamp to Fascia	2.8. +/- 1.1	-
13	Liftgate Glass to Quarter Glass	4.0 +/- 1.7	Liftgate 4.9 U/F +/- 2.2
14	Front Door Molding to Rear Door Molding	4.0 +/- 1.3	Front Door Body Side Molding 11.7 O/F +/- 1.4
15	Rear Door to Quarter Panel	4.0 +/- 0.8	Rear Door 0.0 O/F +/- 0.9
16	Fuel Door to Quarter Panel	2.5 +/- 0.7	Fuel Door U/F 0.9 +/- 0.7
17	Rear fascia to Quarter Panel	0.0 + 0.5	Quarter Panel O/F 0.0 +/- 0.7
18	Tail Lamp to Fascia	1.5 +/- 1.3	-
19	Tail Lamp to Liftgate	4.0 +/- 1.5	-
20	Liftgate to Fascia	6.3+/- 1.6	-
21	Liftgate to Quarter Panel	4.0 +/- 1.2	Liftgate O/F 1.0 +/- 0.5
22	Liftgate Spoiler to Roof	6.5 +/- 1.1	Liftgate U/F 1.5 +/- 1.6
