Seats, Front: Headrest: Removal: Notes

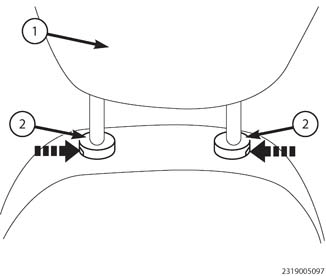

GC0159097Courtesy of CHRYSLER GROUP, LLC
  1. Press the tabs on the head restraint sleeves (2).
  2. While pressing the tabs (2), pull the head restraint (1) straight upward.
  3. Remove the head restraint (1) from the seat back.
