Grab-Handle-Courtesy Lamp

  1. Disconnect the negative battery terminal.

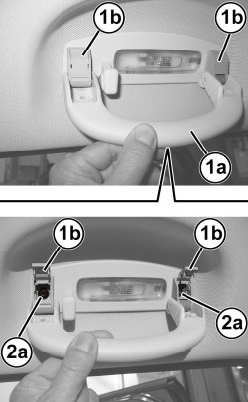

    GC0184282Courtesy of CHRYSLER GROUP, LLC
  2. Lower the handle.
  3. Disengage the tabs (1b) by lifting upwards.
  4. Remove the screws (2a).
    GC0184288Courtesy of CHRYSLER GROUP, LLC
  5. Disconnect the electrical connection (2a).
  6. Retrieve the grab handle (1a) complete with courtesy light.
  7. Release the retaining clips (3a) and extract the courtesy light from the grab handle.
    GC0184236Courtesy of CHRYSLER GROUP, LLC
  8. If necessary, to replace the bulb, lift up the transparent protection (1a) and release the retainers.
  9. Extract the bulb (1b) from the bulb holder (press fit).
