Relay, Horn: Removal

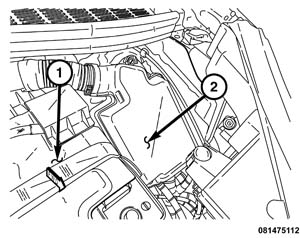

GC0159030Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable (1).
  2. Remove the cover (2) from the Power Distribution Center (PDC) located on the left side of the engine compartment outboard of the battery.
  3. Refer to the fuse and relay layout map on the underside of the PDC cover for horn relay identification and cavity location.
  4. Remove the horn relay by grasping it firmly and pulling it straight out from the cavity within the PDC.
