Shifter, Transmission: Removal

Disconnect and isolate the negative battery cable.

Courtesy of CHRYSLER GROUP, LLC

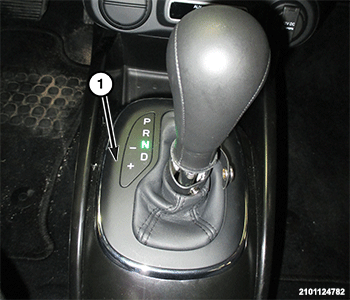

Release the snap fastener (1a).

Courtesy of CHRYSLER GROUP, LLC
With the use of a trim stick (special tool #C-4755, Trim Stick) or equivalent, release the retainers securing the shifter bezel trim (1).

Courtesy of CHRYSLER GROUP, LLC

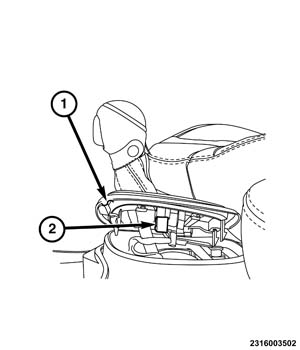

Disconnect the shifter bezel trim wire harness connector (2), if so equipped.
Remove the shifter bezel trim (1) from the vehicle.

Courtesy of CHRYSLER GROUP, LLC

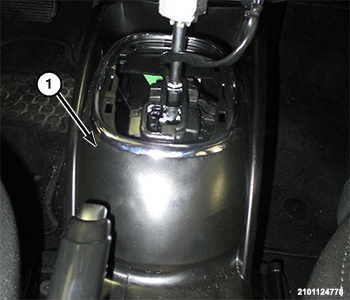

Pull upward to release the shifter bezel retaining tabs and remove the shifter bezel (1).

Courtesy of CHRYSLER GROUP, LLC

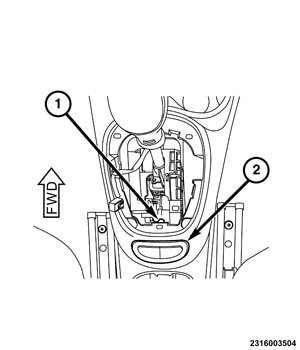

Reach into the rear area of the shifter housing (1) and press the retaining tabs on the back of the electronic stability control switch (2) and then pushing up releasing the switch.
Disconnect the wire harness connector from the switch (2).

Courtesy of CHRYSLER GROUP, LLC

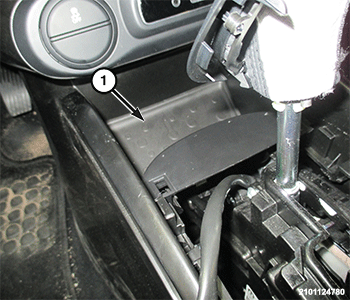

Remove the trinket tray (1).

Courtesy of CHRYSLER GROUP, LLC

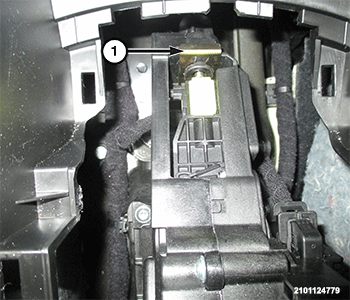

Use a flat blade screwdriver or equivalent to carefully lift the locking retainer (1) up prior to removing the shifter cable from the shifter assembly.

Courtesy of CHRYSLER GROUP, LLC

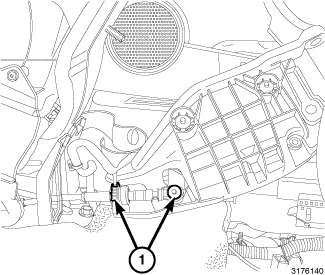

Disconnect the cable (1) from the shifter lever using a fork trim tool or the equivalent.

Courtesy of CHRYSLER GROUP, LLC

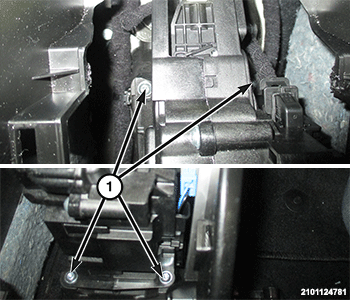

Remove the shifter assembly bolts (1) and remove the shifter assembly from the vehicle.
