Shaft, Output: Disassembly

WARNING: This page is about a different variant/trim than selected.

Courtesy of CHRYSLER GROUP, LLC

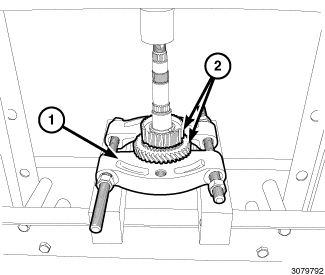

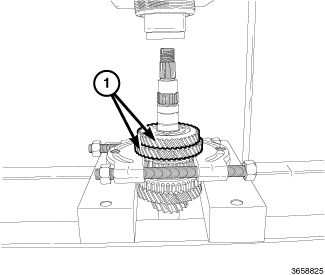

Remove the fourth speed driven gear using (special tool #P-334, Splitter, Bearing).
Remove the fourth gear to third gear spacer.

Courtesy of CHRYSLER GROUP, LLC

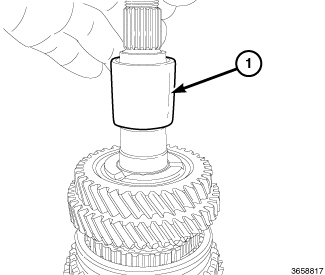

Remove the spacer sleeve.

Courtesy of CHRYSLER GROUP, LLC

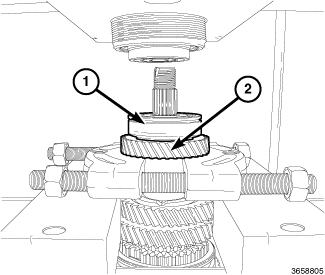

Remove the third and second driven gears using (special tool #P-334, Splitter, Bearing).

Courtesy of CHRYSLER GROUP, LLC
Remove the first/second gear synchronizer and slider ring (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the needle bearing from the shaft.

Courtesy of CHRYSLER GROUP, LLC
Remove the snap ring (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the first driven gear and the first/second synchronizer hub using (special tool #P-334, Splitter, Bearing).

Courtesy of CHRYSLER GROUP, LLC
Remove the needle bearing from the shaft.
Using a die grinder or the equivalent, cut 2 grooves in the rear bearing race 180° apart.
Remove the rear bearing race from the shaft using (special tool #P-334, Splitter, Bearing).
