Input Shaft, Transmission: Disassembly

WARNING: This page is about a different variant/trim than selected.

Courtesy of CHRYSLER GROUP, LLC

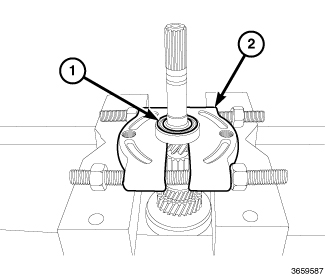

Remove the front input shaft front bearing using (special tool #P-334, Splitter, Bearing).

Courtesy of CHRYSLER GROUP, LLC
Remove the rear input shaft rear bearing (1), spacer (2) and collar (3) using (special tool #P-334, Splitter, Bearing).

Courtesy of CHRYSLER GROUP, LLC
Remove the forth driven gear, thrust washer and blocker ring from the shaft.

Courtesy of CHRYSLER GROUP, LLC
Remove the slider ring and spring loaded detents from the hub.

Courtesy of CHRYSLER GROUP, LLC
Remove the hub and the third gear from the shaft using (special tool #P-334, Splitter, Bearing).

Courtesy of CHRYSLER GROUP, LLC
Remove the needle bearing (1).
