Fluid Drain And Fill
WARNING: This page is about a different variant/trim than selected.
NOTE:
The vehicle must be level when checking the fluid level)

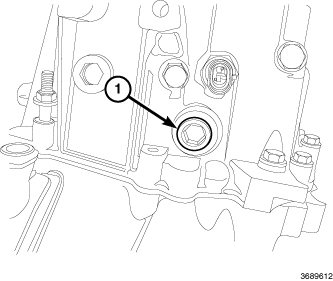

The transmission drain plug (1) is located on the lower left side of the transmission differential housing. Tighten the drain plug to 18 N.m (13 lb ft.).
The transaxle fill plug (1) is located on the left side of the transmission differential area. The fluid level should be even with the bottom of the transmission fill hole. Tighten the fill plug to 25 N.m (18 lb ft.).
