Differential, Transaxle: Disassembly

WARNING: This page is about a different variant/trim than selected.
NOTE:

The differential case and side gears are not serviced separately and must be replaced as an assembly.

NOTE:

Right side show. Left side similar.

GC0153705Courtesy of CHRYSLER GROUP, LLC

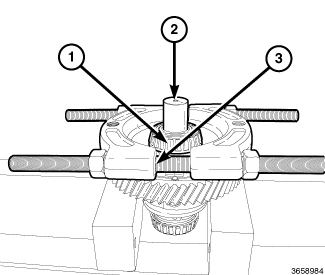

  1. Remove the differential bearings (1) using (special tool #8513A, Insert, Crankshaft) (2) and (special tool #1130, Splitter, Bearing/Gear) (3).
    GC0152604Courtesy of CHRYSLER GROUP, LLC
  2. Remove the ring gear bolts (1) and discard.
  3. Remove the ring gear.
