Cable, Gearshift Control: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

The cables are serviced as an assembly, do not attempt to separate them.

Remove the gearshift. Refer to MECHANISM, GEARSHIFT, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC
Remove the horse shoe reinforcement bracket.
Remove the battery tray assembly. Refer to TRAY, BATTERY, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Pry up at the joint (1) and not the rod to avoid potential damage to the cable end.
Disconnect the gearshift selector cable from the gearshift selector lever using a forked trim tool or the equivalent.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Pry up at the joint (1) and not the rod to avoid potential damage to the cable end.

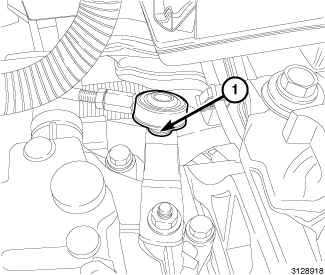

Disconnect the gearshift cable from the gearshift lever using a forked trim tool or the equivalent.

Courtesy of CHRYSLER GROUP, LLC

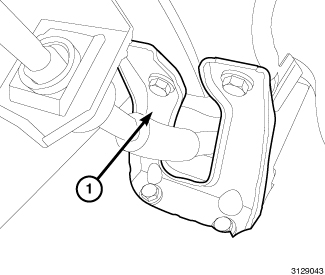

Disconnect the gearshift cables from the mounting bracket by pulling collar (1) back and lifting gearshift cable up.
Raise the vehicle.

Courtesy of CHRYSLER GROUP, LLC

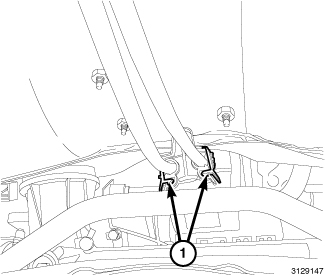

Disconnect the gearshift cables from the underbody retaining clip.
Reposition the underbody heat shield and push the gearshift cable grommet into the passenger compartment.
Lower the vehicle
Remove the gearshift cable assembly from vehicle through the floor pan opening.
