Section 57 (Clutch System - 500): Description: Notes

WARNING: This page is about a different variant/trim than selected.

Courtesy of CHRYSLER GROUP, LLC

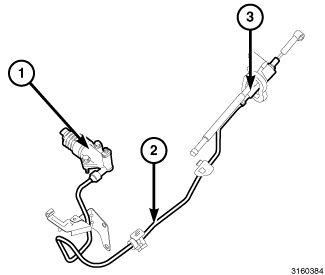

The typical clutch hydraulic system consists of a clutch master cylinder (3), slave cylinder (1), and an interconnecting hydraulic line (2). Clutch hydraulic fluid is supplied by the brake system via the brake master cylinder reservoir.
