Cylinder, Clutch Slave: Removal: C510

WARNING: This page is about a different variant/trim than selected.
  1. Remove transaxle from the vehicle.
  2. Place the transaxle on a bench.

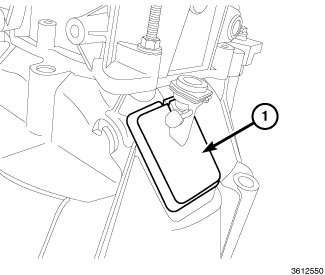

    GC0153663Courtesy of CHRYSLER GROUP, LLC
  3. Remove the Concentric Slave Cylinder (CSC) boot (1) from the bell housing.

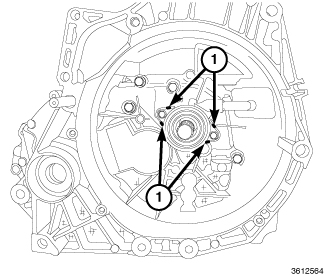

    GC0153664Courtesy of CHRYSLER GROUP, LLC
  4. Release the retention tabs from the CSC (1).

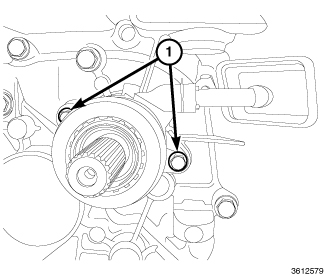

    GC0153665Courtesy of CHRYSLER GROUP, LLC
  5. Remove the CSC bolts (1).

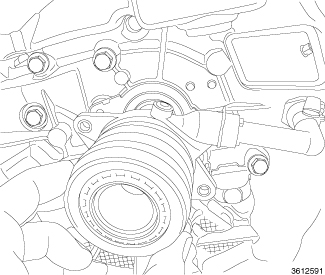

    GC0153666Courtesy of CHRYSLER GROUP, LLC
  6. Remove the CSC from the case.
