Switch, Sunroof: Installation

WARNING: This page is about a different variant/trim than selected.

WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

Courtesy of CHRYSLER GROUP, LLC

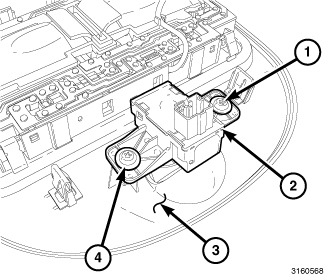

Position the power sunroof switch (2) onto the back of the switch bezel (3).
Install and tighten the two screws (1 and 4) that secure the switch mounting tabs to the bezel. Tighten the screws securely.
Reinstall the switch and bezel unit onto the headliner. Refer to CONSOLE, OVERHEAD, INSTALLATION .
Connect the 12 volt negative battery cable.
Power up the high voltage system. Refer to HIGH-VOLTAGE POWER UP .
