Unit, Headlamp: Removal: Bulb
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Do not contaminate the bulb glass by touching it with your fingers or by allowing it to contact other oily surfaces. Shortened bulb life will result.
- Disconnect and isolate the battery negative cable.

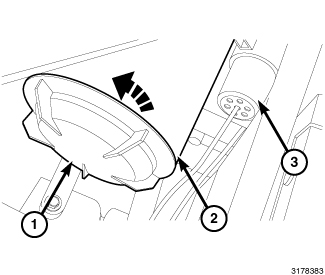

- Reach behind the headlamp unit housing (2) to access and rotate the cover (1) on the back of the housing counterclockwise and remove it from the lamp.
- Firmly grasp the bulb base (3) and rotate it counterclockwise about 30 degrees to unlock it.
- Pull the bulb and base straight out from the keyed opening in the headlamp reflector.
- Disconnect the wire harness connector (2) from the bulb connector receptacle.
