Unit, Headlamp: Installation: Bulb
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.
CAUTION:
Do not contaminate the bulb glass by touching it with your fingers or by allowing it to contact other oily surfaces. Shortened bulb life will result.

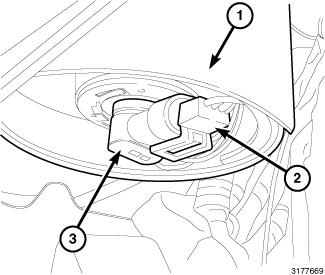

- Align the headlamp bulb and base (3) with the keyed opening on the back of the headlamp reflector.
- Insert the bulb and base into the reflector until the base is firmly seated.
- Rotate the bulb base clockwise about 30 degrees to lock it into place.
- Reconnect the wire harness connector (2) to the bulb connector receptacle.
- Position the cover (1) onto the back of the headlamp unit housing.
- Rotate the cover clockwise to lock it into place.
- Reconnect the battery negative cable.
