High Beam Headlamp Bulb - MEXICO And LATIN AMERICA Only
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Do not contaminate the bulb glass by touching it with your fingers or by allowing it to contact other oily surfaces. Shortened bulb life will result.
- Disconnect and isolate the battery negative cable.
- Turn the front wheels to permit easiest access to the access door (2) in the front of the front wheel house splash shield (1) on the same side of the vehicle as the lamp being serviced.
- Raise and support the vehicle.
- Unlatch and remove the access panel to access the back of the lower front combination lamp unit housing.
- Remove the protective rubber boot from the back of the lower front combination lamp unit housing.

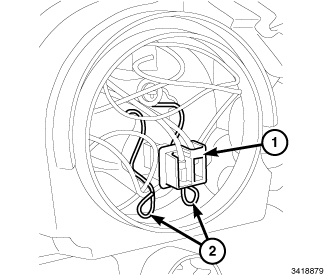

- Release the retainers (2) that secure the bulb and socket (1) to the reflector within the lamp housing.
- Pull the socket and bulb straight out from the keyed opening in the reflector.

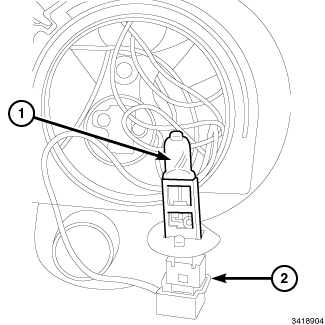

- Pull the base of the bulb (1) straight out of the socket (2).
