Switch, Parking Brake: Installation

WARNING: This page is about a different variant/trim than selected.

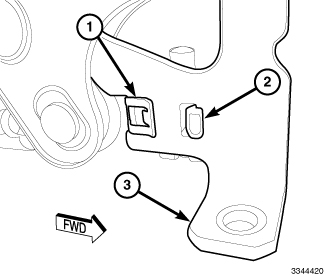

GC0153282Courtesy of CHRYSLER GROUP, LLC
  1. Position the park brake switch to the park brake lever base bracket (3).
  2. Engage the mounting tab (2) at the front of the switch housing into the slot in the base bracket.
  3. Engage the metal retainer clip (1) at the back of the switch housing over the edge of the base bracket, then slide clip forward far enough for the clip to engage the groove stamped in the right side of the base bracket.
    GC0153284Courtesy of CHRYSLER GROUP, LLC
  4. Reinstall the park brake lever mechanism (1) onto the floor panel transmission tunnel. Refer to LEVER, PARKING BRAKE, INSTALLATION .
  5. Reconnect the battery negative cable.
