Lamp, Tail Stop Turn: Installation: Lamp

WARNING: This page is about a different variant/trim than selected.

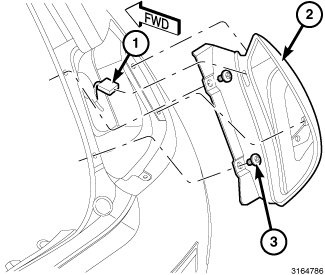

GC0152977Courtesy of CHRYSLER GROUP, LLC
  1. Check to be certain that the two plastic ball stud grommets are in good condition and properly installed in the quarter outer panel.
  2. Position the rear lamp unit (2) to the lamp opening of the quarter outer panel.
  3. Reconnect the body wire harness connector (1) to the socket plate connector receptacle on the back of the lamp housing.
  4. Align the two ball studs on the outboard side of the lamp housing with the two grommets in the quarter outer panel.
  5. Using hand pressure, push firmly and evenly on the outboard top and bottom of the lamp until both ball studs snap into the grommets.
  6. Install and tighten the two screws (3) that secure the rear lamp unit to the side trough of the liftgate opening. Tighten the bolts to 27 N.m (20 ft. lbs.).
  7. Reconnect the battery negative cable.
