Lamp, Fog: Installation: Lamp

WARNING: This page is about a different variant/trim than selected.

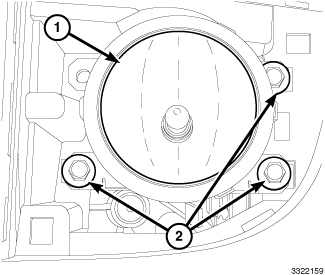

GC0153266Courtesy of CHRYSLER GROUP, LLC
  1. Position the front fog lamp (1) close enough to the seat in the front fascia to access and reconnect the wire harness connector to the bulb connector receptacle on the back of the lamp housing.
  2. Position the fog lamp into the seat of the front fascia.
  3. Install and tighten the three screws (2) that secure the fog lamp to the front fascia. Tighten the screws securely.

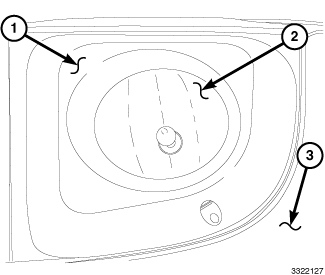

    GC0153265Courtesy of CHRYSLER GROUP, LLC
  4. Position the bezel (1) over the fog lamp (2) in the seat of the front fascia (3).
  5. Using hand pressure, press the bezel firmly and evenly into the seat of the front fascia until the snap clips are fully engaged.
  6. Reconnect the battery negative cable.
  7. Confirm proper front fog lamp alignment. Refer to STANDARD PROCEDURE - LAMP ALIGNMENT .
