Module, Radio Antenna: Description
WARNING: This page is about a different variant/trim than selected.

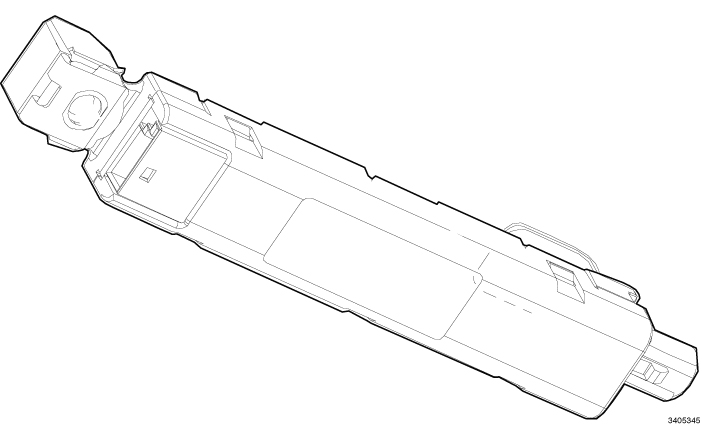

The antenna module is an electronic circuit component designed to capture and enhance RF (Radio Frequency) signals in both the AM and FM broadcast bands. The antenna module is mounted to the passenger A-pillar. The module is grounded through the mounting bracket and fastener. The module has a two wire electrical connector that connects to the integral radio antenna and Electric BackLite (EBL) grid, located on the back glass. There is also an electrical connector for battery voltage and a coax cable connector.
