Pads, Brake, Front: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:

Before proceeding, refer to CAUTION  and WARNING .

  1. Raise and support the vehicle. Refer to HOISTING .
  2. Remove the tire and wheel assembly. Refer to REMOVAL .
    GC0158568Courtesy of CHRYSLER GROUP, LLC
  3. Remove the anti-rattle clip (1) from brake caliper (2).
    GC0176806Courtesy of CHRYSLER GROUP, LLC
  4. Remove dust covers from caliper guide pin bolts, if equipped.
  5. Remove the two brake caliper guide pin bolts (1).
  6. Remove the disc brake caliper (2) from the disc brake adapter bracket and hang it out of the way using wire or a bungee cord. Use care not to overextend the brake hose when doing this.

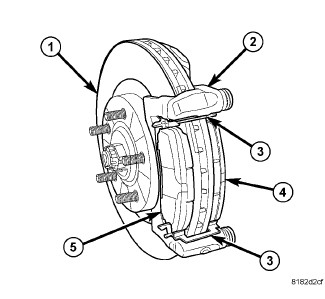

    GC0082138Courtesy of CHRYSLER GROUP, LLC
  7. Remove the brake pads (4, 5) from the caliper adapter bracket (2).
