Rear Seat Restraint Sleeves

WARNING: This page is about a different variant/trim than selected.
GC0153377Courtesy of CHRYSLER GROUP, LLC
CAUTION:

Take great care not to damage the seat cover.

  1. Remove the headrest.

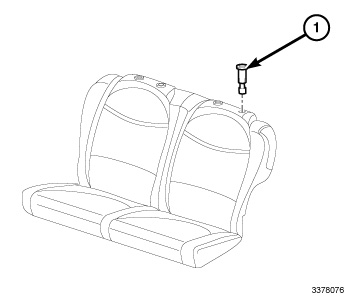

  2. Press the retaining tooth using a suitable tool and remove the sleeve (1) pushing it upward.
