Hinge, Hood: Installation

WARNING: This page is about a different variant/trim than selected.

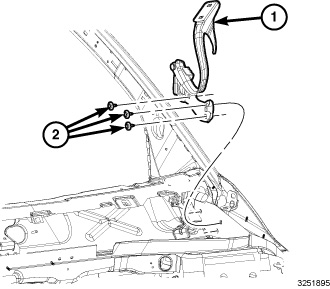

GC0153104Courtesy of CHRYSLER GROUP, LLC
  1. Align hood hinge with fastener holes.
  2. Install fasteners (2) in to hinge holes.
  3. Tighten nuts (3) to 20 N.m (15 ft.lbs.).
  4. Install hood to hinge. Refer to HOOD, INSTALLATION .
  5. Install the cowl panel. Refer to COVER, COWL PANEL, INSTALLATION .
