Shield, Splash, Front Wheelhouse: Removal

WARNING: This page is about a different variant/trim than selected.

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Base model shown in the illustration, other models typical unless noted.

Raise and support the vehicle. Refer to HOISTING .
Remove the splash shield to fascia fasteners (1).

Courtesy of CHRYSLER GROUP, LLC

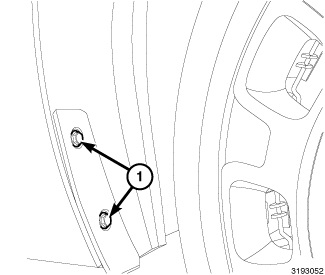

Remove the two fasteners (1) securing the cladding to the splash shield.

Courtesy of CHRYSLER GROUP, LLC

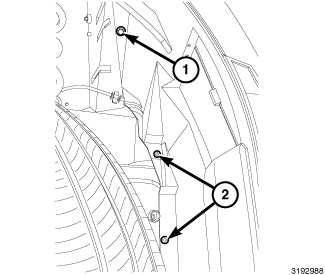

Remove the three fasteners (1, 2) located forward of the wheel securing the splash shield to the vehicle.

Courtesy of CHRYSLER GROUP, LLC
If necessary, remove the front wheel.

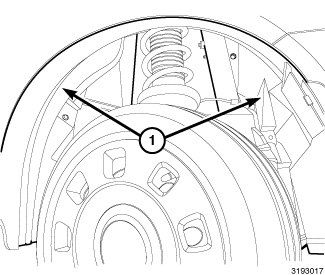

Remove the three remaining fasteners located at the top and rear lower areas of the splash shield (1).
Remove the splash shield (1) from the wheelhouse.
