Mirror, Outside Rearview: Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
On vehicles equipped with the high voltage system, disconnecting the 12-volt battery negative cable alone will not power down the 12-volt system. You must perform the 12-volt Power Down procedure before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
- On vehicles equipped with the high voltage system, power down the 12 volt system. Refer to 12-VOLT POWER DOWN .
- Disconnect the negative 12-volt battery cable.

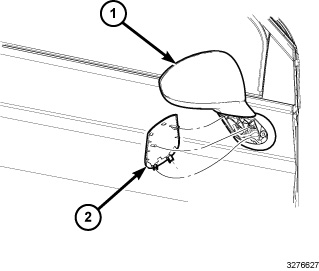

- Using trim stick (special tool #C-4755, Trim Stick), pry up the exterior mirror trim cover (2).
- Disconnect wire connector from wire harness.
- Remove the fasteners securing the exterior mirror (1) to the door.
- Remove the mirror (1).
