Sensor, Wheel Speed, Rear: Installation

WARNING: This page is about a different variant/trim than selected.

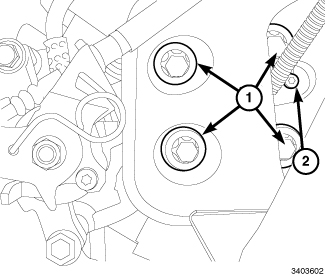

GC0153402Courtesy of CHRYSLER GROUP, LLC
  1. Install the wheel speed sensor head into the rear of the hub and bearing.
  2. Install the wheel speed sensor head mounting screw (2) and tighten to 7 N.m (62 in. lbs.).

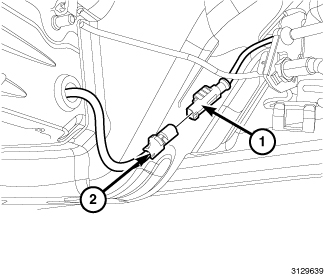

    GC0152847Courtesy of CHRYSLER GROUP, LLC
  3. Route wheel speed sensor cable and snap into clips and retainers.
  4. Connect wheel speed sensor cable connector (1) to body wiring harness connector (2).
  5. Lower the vehicle.
