Sensor, Wheel Speed, Front: Removal

WARNING: This page is about a different variant/trim than selected.
GC0152499Courtesy of CHRYSLER GROUP, LLC
NOTE:

Before proceeding, refer to CAUTION and WARNING .

  1. Raise and support the vehicle. Refer to HOISTING .

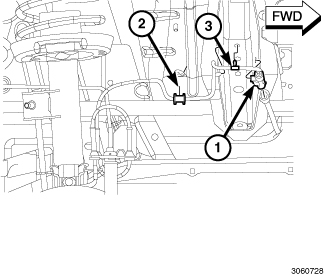

  2. Disconnect the wheel speed sensor cable connector (1) from the wiring harness connector on the inner fender.
  3. Separate sensor cable clips from retainers (2, 3).
    GC0152501Courtesy of CHRYSLER GROUP, LLC
  4. Remove the speed sensor cable routing clips (1, 2, 3) from retainers.
    GC0152500Courtesy of CHRYSLER GROUP, LLC
  5. Remove the mounting screw (1) fastening the wheel speed sensor head (2) to the knuckle. Pull the sensor head out of the knuckle and remove the wheel speed cable from the vehicle.
