Sensor, Wheel Speed, Front: Description
WARNING: This page is about a different variant/trim than selected.
The antilock brake system uses two-wire wheel speed sensors, known as active wheel speed sensors. The sensors use an electronic principle known as magnetoresistive to help increase performance and durability. The sensors convert wheel speed into a small digital signal. A Wheel Speed Sensor (WSS) is used at each wheel. A magnetic pole encoder serves as the trigger mechanism for each sensor. At each wheel of the vehicle there is one wheel speed sensor and one encoder.

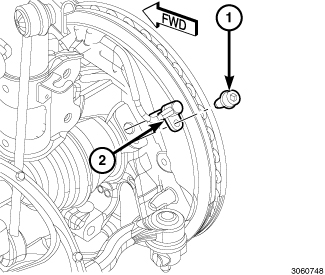

A front wheel speed sensor (2) is attached to a mounting boss on each front knuckle. The encoder is an integral part of the hub and bearing.
WSS air gaps are not adjustable.
