Sensor, Dynamics: Installation

WARNING: This page is about a different variant/trim than selected.

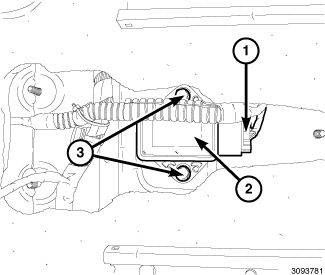

GC0152732Courtesy of CHRYSLER GROUP, LLC
  1. Install the dynamics sensor (2) to the floor pan tunnel.
  2. Install the two mounting bolts (3) and tighten the bolts to 9 N.m (80 in. lbs.).
  3. Connect the wiring harness connector (1) to the dynamics sensor (2).
  4. Install the center floor console. Refer to CONSOLE, FLOOR, INSTALLATION .
  5. Reconnect the negative battery cable.
  6. Power up the vehicle. Refer to HIGH-VOLTAGE POWER UP .
  7. Perform the Verification Test and clear any faults. Refer to MODULE, ANTI-LOCK BRAKE SYSTEM (ABS) .
