Evaporator, A/C: Removal

WARNING: This page is about a different variant/trim than selected.
GC0152589Courtesy of CHRYSLER GROUP, LLC
  1. Remove the HVAC housing assembly. Refer to HOUSING, HVAC, REMOVAL .
  2. Disassemble the HVAC housing as necessary to access the A/C evaporator. Refer to DISASSEMBLY .
    NOTE:

    If the foam insulator for the evaporator is deformed or damaged, it must be replaced.

  3. Remove the A/C evaporator (1) and the A/C expansion valve (2) as an assembly from the left side of the HVAC housing (2).

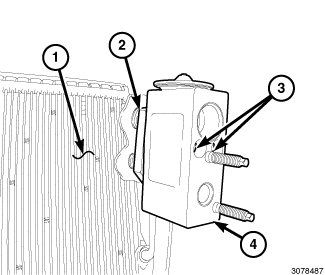

    GC0152600Courtesy of CHRYSLER GROUP, LLC
  4. Remove the two bolts (3) that secure the A/C expansion valve (4) to the tapping block (2).
  5. Remove the A/C expansion valve from the A/C evaporator (1) and remove and discard the O-ring seals.
    NOTE:

    If the foam seal for the evaporator tubes is deformed or damaged, it must be replaced.

  6. Remove the tapping block (2).
  7. Install plugs in, or tape over, the opened evaporator and expansion valve ports.
