Demister Outlets

WARNING: This page is about a different variant/trim than selected.
NOTE:

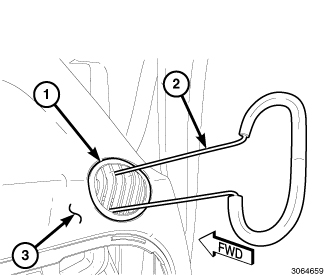

Right side outlet shown in the illustration. Left side outlet similar.

GC0152531Courtesy of CHRYSLER GROUP, LLC
  1. Install Air Vent Remover (special tool #10289, Remover, Air Outlet) (2) onto the demister outlet (1) being serviced.
  2. Carefully pull on Air Vent Remover (special tool #10289, Remover, Air Outlet) and remove the demister outlet from the instrument panel cover (3).
