Module, Power, Blower Motor: Installation

WARNING: This page is about a different variant/trim than selected.

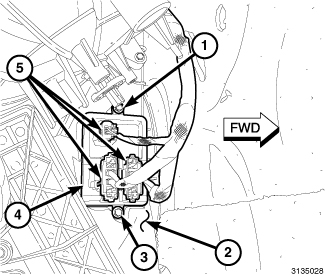

GC0152867Courtesy of CHRYSLER GROUP, LLC
  1. Install the blower motor power module (4) to the right side of the HVAC housing (2) and install the two retaining screws (1 and 3). Tighten the screws to 0.8 N.m (7 in. lbs.).
  2. Connect the three wire harness connectors (5) to the blower motor power module.
  3. Install the recirculation door actuator. Refer to ACTUATOR, RECIRCULATION DOOR, INSTALLATION .

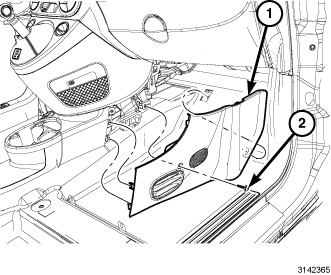

    GC0152895Courtesy of CHRYSLER GROUP, LLC
  4. Position the passenger side console closeout cover (1) and engage the front retaining tab.
  5. Carefully engage the console closeout cover rear retaining clips and install the screw (2). Tighten the screw securely.
  6. Install the passenger side silencer panel. Refer to PANEL, SILENCER, INSTALLATION .
  7. Connect the 12-volt negative battery cable.
  8. Power up the high-voltage system. Refer to 12 VOLT POWER UP .
