Bumper, Jounce: Installation

WARNING: This page is about a different variant/trim than selected.

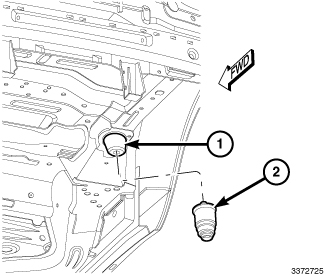

GC0153373Courtesy of CHRYSLER GROUP, LLC
CAUTION:

Do not use any type of lubricant to aid in jounce bumper installation. Premature jounce bumper failure issues could result.

  1. Carefully twist and push the jounce bumper (2) into the bracket (1) mounted to the body of the vehicle until it bottoms in the bracket.
  2. Lower the vehicle.
