Air Cleaner: Installation

GC0157623Courtesy of CHRYSLER GROUP, LLC
  1. Install the air cleaner element (1) to the air cleaner body cover.

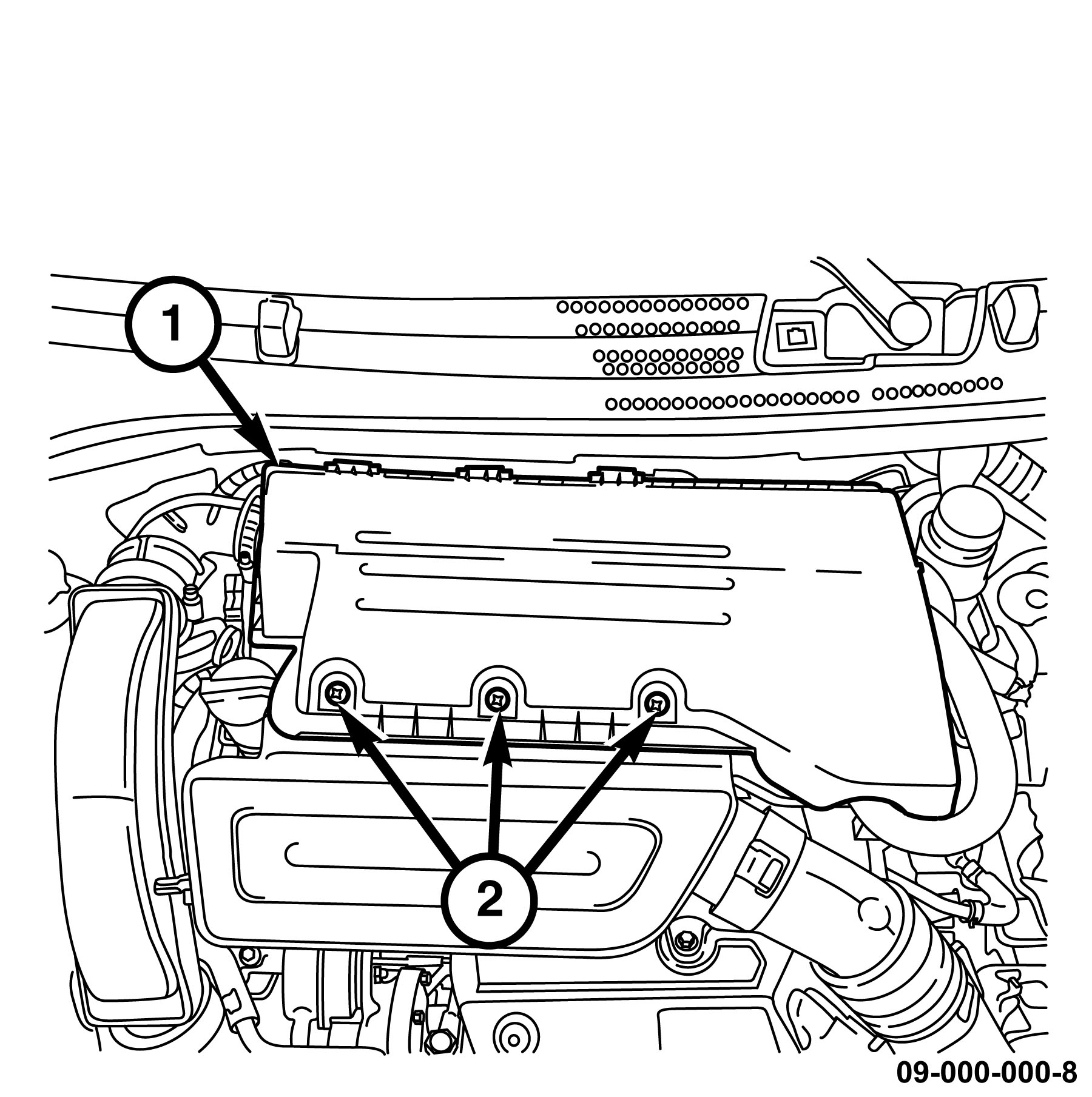

    GC0157585Courtesy of CHRYSLER GROUP, LLC
  2. Install the air cleaner body cover (1) with three screws (2) tightened to 4 N.m (35 in. lbs.).
