Switch, Electronic Stability Program (Esp): Removal

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect and isolate the negative battery cable.
2. Remove the closeout panel (1) housing the ESC switch (2). Refer to PANEL, INSTRUMENT PANEL TRIM, REMOVAL .
3. Disconnect the electrical connector from the ESC switch.

   Courtesy of CHRYSLER GROUP, LLC

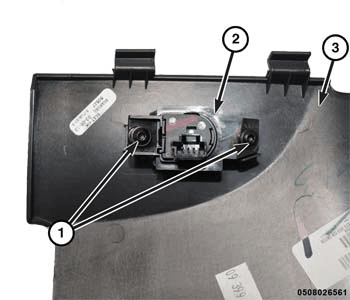

4. Remove the screws (1) attaching the ESC switch (2) to the closeout panel (3).
