Tires & Wheels (Service Information) - 500L: Installation

Courtesy of CHRYSLER GROUP, LLC

WARNING:

Installing wheels without good metal-to-metal contact with the mounting surface could cause loosening of the wheel mounting (lug) bolts. This could adversely affect the safety and handling of the vehicle.

NOTE:

Never use oil or grease on studs or wheel mounting (lug) bolts.

Clean the wheel mounting surfaces, removing any build-up of corrosion. It is important to have good metal-to-metal contact between the wheel and vehicle.

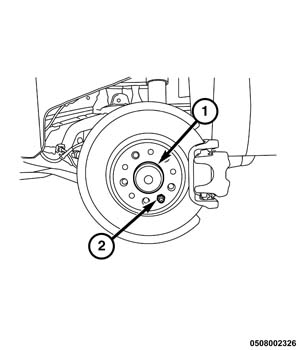

Position the tire and wheel assembly on the wheel mounting pin (2). Place and hold the wheel flush up against the mounting surface.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Always use the original (OEM) style wheel mounting (lug) bolts. Do not use replacement parts of lesser quality or substitute design.
Install and lightly snug all four wheel mounting (lug) bolts (1). Do not tighten at this time .
Lower the vehicle.
Progressively tighten all wheel mounting (lug) bolts in a star pattern.
1. For steel wheels, tighten the bolts to 85 Nm (63 lbf-ft).
2. For aluminum wheels, tighten the bolts to 100 Nm (75 lbf-ft).
