Shroud, Steering Column, Lower: Installation

Courtesy of CHRYSLER GROUP, LLC

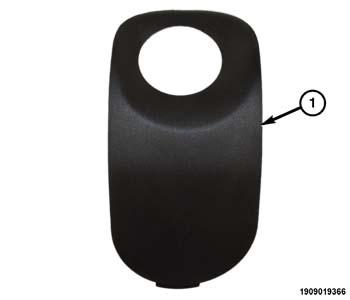

1. Align the turn and headlight stalk cover (1) into the upper and lower shroud.

   Courtesy of CHRYSLER GROUP, LLC

2. Install the lower shroud (2) into the upper shroud, aligning the tabs (1) and clipping the shrouds to one another.

   Courtesy of CHRYSLER GROUP, LLC

3. Install the screws (1, 2) attaching the lower shroud to the upper shroud.
