Prop, Gas: Installation

Courtesy of CHRYSLER GROUP, LLC

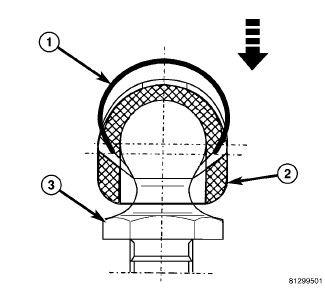

1 - RETAINING CLIP

2 - BALL SOCKET

3 - BALL STUD

Make sure the retaining clips (1) are seated into the ball socket (2) fully.

Courtesy of CHRYSLER GROUP, LLC

CAUTION:
Do not install the support cylinders by pressing at the center of the cylinder. Press the ends only.

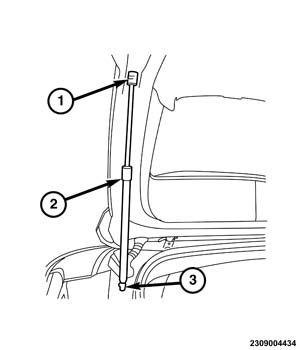

Install the support cylinder (2) over the ball studs with the thin end connected to the liftgate side (1) and the larger end connected to the body side (3).
Inspect to be certain the retaining clips have seated fully and properly into place.
