DECKLID/Hatch/Liftgate/Tailgate/Swing Gate: Latch: Removal

Courtesy of CHRYSLER GROUP, LLC

1. Open the liftgate.
2. Disconnect and isolate the battery negative cable.
3. Remove the liftgate lower trim panel (1). Refer to PANEL, TRIM, LIFTGATE, REMOVAL .

   Courtesy of CHRYSLER GROUP, LLC

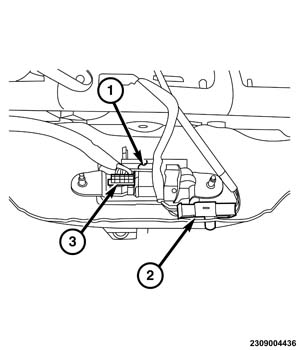

4. Disconnect the wiring connector (3) from the latch (1).

   Courtesy of CHRYSLER GROUP, LLC

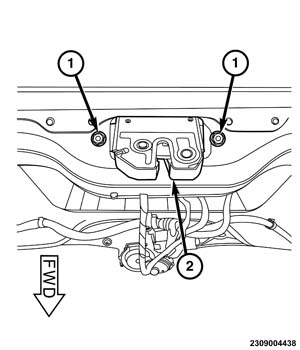

5. Remove the fasteners (1) securing the latch (2) to the liftgate.
6. Remove the latch from the liftgate.
