Booster, Power Brake: Removal

GC0152354Courtesy of CHRYSLER GROUP, LLC
CAUTION:

The vacuum in the power brake booster must be pumped down before removing the master cylinder to prevent the booster from sucking in any contamination. This can be done by pumping the brake pedal while the engine is not running until a firm brake pedal is achieved.

NOTE:

Before proceeding, refer to CAUTION  and WARNING .

  1. With the engine not running, pump the brake pedal 4-5 strokes until the pedal feel is firm.
  2. Remove the engine cover (1).
  3. Disconnect and isolate the battery negative cable from its post on the battery.
    GC0152393Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect and remove the battery. Refer to REMOVAL .
  5. Disconnect the powertrain control module (PCM) electrical connectors (1 and 2).
    GC0152563Courtesy of CHRYSLER GROUP, LLC
  6. Disengage two starter wire harness retainers (6) from the battery tray (3).
  7. Disengage two engine wire harness retainers (4) from the battery tray (3).
  8. Disengage the engine wire harness connector (2) from the battery tray (3) and reposition the wire harness.
  9. Remove the nut (5) and two bolts (1).
    GC0152394Courtesy of CHRYSLER GROUP, LLC
  10. Open the two wire harness retainers (3) and reposition the wire harness.
  11. Remove the battery tray with the PCM (2) attached.

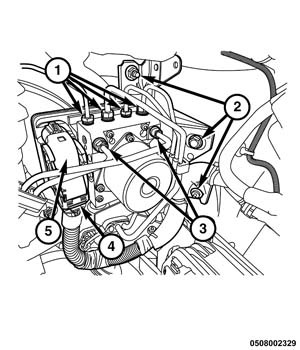

    GC0159136Courtesy of CHRYSLER GROUP, LLC
  12. Disconnect the Antilock Brake Module (ABM) harness connector (5) from the ABM. To do so:
    1. Lift the connector cover (4) until it locks into position straight up and down.
    2. The connector can then be pulled off the ABM.
    GC0158829Courtesy of CHRYSLER GROUP, LLC
  13. Siphon as much fluid as possible from master cylinder reservoir.
  14. Remove brake tubes (2) from Integrated Control Unit (ICU), including two fittings (4) from the master cylinder.
  15. Remove the three mounting screws (3) attaching the ICU mounting bracket to the body.
  16. Lift the ICU up to remove from the mounting pin.
  17. Move the brake tubes around as necessary without bending them and remove the ICU with bracket from the vehicle.
  18. Disconnect the vacuum hose from the check valve on the power brake booster.
  19. Remove brake fluid switch (6) from master cylinder reservoir.
    GC0158830Courtesy of CHRYSLER GROUP, LLC
  20. Remove master cylinder retaining nuts (1) and remove master cylinder from vehicle.
    GC0158840Courtesy of CHRYSLER GROUP, LLC
  21. Remove intermediate shaft pinch bolt (2) and separate intermediate shaft (1) from steering gear pinion shaft (3).
    GC0155758Courtesy of CHRYSLER GROUP, LLC
  22. Disengage clips (1) on booster rod keeper assembly retainer (2). Position retainer (2) up to remove booster rod from pedal assembly.
    GC0152493Courtesy of CHRYSLER GROUP, LLC
  23. Remove the four nuts (3) attaching the power brake booster to the dash panel.
    GC0152492Courtesy of CHRYSLER GROUP, LLC
  24. Slide the power brake booster (2) forward until its mounting studs clear the dash panel, then remove it through the engine compartment.
