Rear Seat Restraint Sleeves

Courtesy of CHRYSLER GROUP, LLC

CAUTION:

Take great care not to damage the seat cover.

On the outboard side cover (3), using a small flat bladed tool or equivalent, remove the fastener cover from the recliner lever (2) and fastener (4).
Remove the fasteners (1 and 4).
Remove the recliner lever (2).
Remove the fastener cover from the rear of the side cover (5) and remove the fastener within.
Remove the outboard side cover (3) from the seat.

Courtesy of CHRYSLER GROUP, LLC
On the inboard side cover (1), using a small flat bladed tool or equivalent, remove the fastener cover from the fastener (3).
Remove the fasteners (3) from the inboard side cover.
Remove the fasteners cover and fastener from the rear of the inboard side cover (2).
Remove the inboard side cover (1) from the seat.
Remove the headrest.

Courtesy of CHRYSLER GROUP, LLC
Temporarily install the recliner lever to the outboard side cover area and carefully move the back rest forward.
Untuck the ends of the right and left side zippers (1) and bottom zipper (3) from the bottom of the seat back cover (2).
Unfasten both side zippers (1) and bottom zipper (3).
Use the recliner lever to move the back rest to the upright position.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Steps 14 through 16 are only to be performed when servicing the right side rear seat.
Remove the armrest (1). Refer to ARMREST, REAR, REMOVAL .
Remove the center seat belt buckle anchor. Refer to BUCKLE, SEAT BELT, REMOVAL .
Raise the seat back cushion slightly and unfasten J-channel retainers from the back of the seat cover in the armrest area.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Shown without back rest seat cover and cushion for clarity.
Raise the front of the back rest cushion and cover to access the head restraint sleeves (1).
With the use of a hook tool (2) or equivalent, press in the head restraint sleeve retaining tab.

Courtesy of CHRYSLER GROUP, LLC

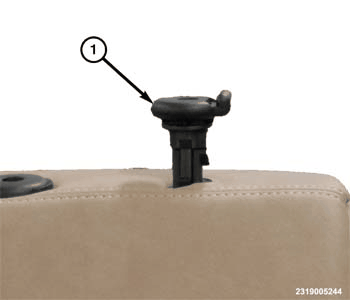

Remove the head restraint sleeve (1) pushing it upward.
