Seats, Rear: Headrest: Removal: Notes

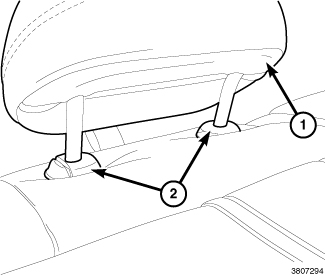

GC0155557Courtesy of CHRYSLER GROUP, LLC
  1. Raise the head restraint (1) slightly.
  2. At the same time, press both buttons on the head restraint guides (2) and pull upward to release the head restraint (1).
  3. Remove the head restraint (1) from the seat back.
